Our deployment systems facilitate mat and roadway installation and recovery. These mechanical equipment can fit every vehicle.
They are user-friendly and allow the deployment of very long roadways in a moment by a few people. The deployment systems can be vehicle powered with hydraulic or electrical power. They can also be autonomous thanks to a dedicated thermic generator. They are modular and able to deliver only the necessary roadway solutions.
The deployment systems are off-the-shelf for most of the cases. But for specific needs. We can adapt these existing systems or develop custom-made dedicated systems. Our engineering team is limitless!
French Origin Guarantee
Our dispensers are certified French Origin Guarantee by an independent organism. "French Origin Guarantee is the only certification that certify the French origin of a product" (www.originefrancegarantie.fr).
This certificate makes its true value to the French know-how and ensures a real transparency unlike self-proclaimed formulas such as "made in France", "French manufacture" or also "French company". DESCHAMPS is a SME set up in Charente, France since 1860. It is here that are manufactured the access mats.
The unique know-how of our teams allows to guarantee a local manufacture and to avoid any component importations from low-cost countries. DESCHAMPS is also certified ISO 9001 and ISO 14001, guaranteeing the best level of quality and environmental considerations.
TECHNICAL FEATURES

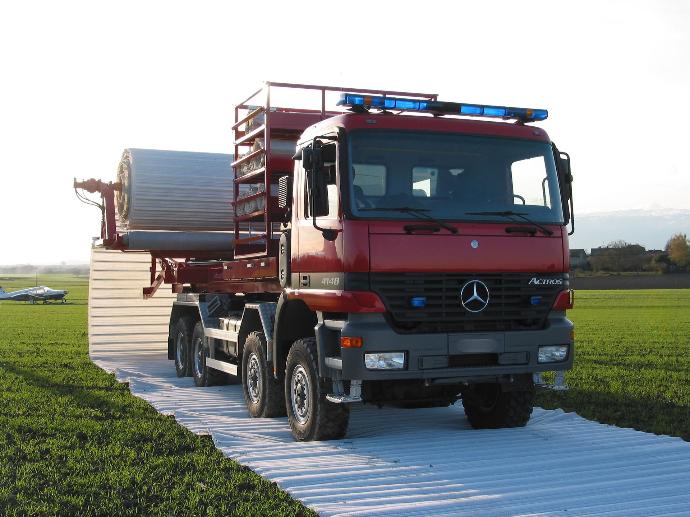

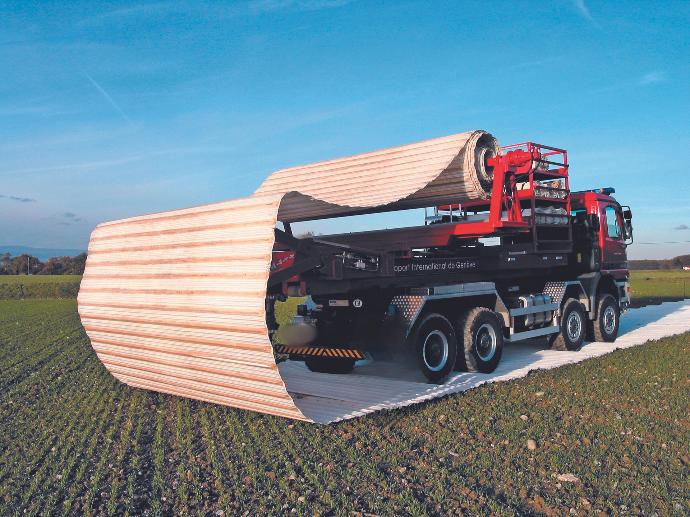

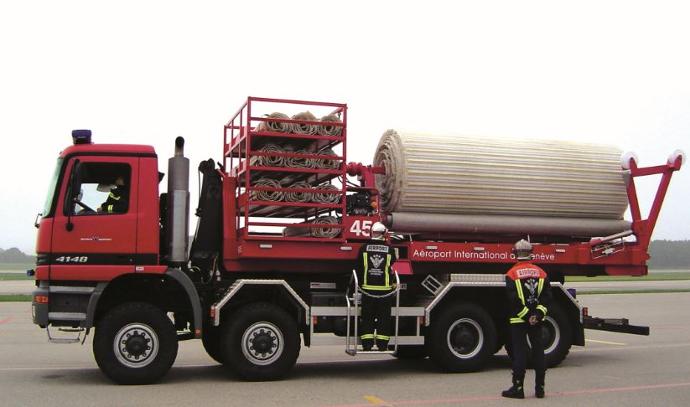

Truck Mounted Dispenser - FLATRACK™
The Flatrack™ mounted roadway dispenser is the ideal tool to deploy your Quick Access™ temporary roadway in few minutes.
Optional trailer-mounted additional spool
This extra spool allows to double the length of roadway.
It is towed by the truck can reload the Flatrack™ truck-mounted system once it has deployed its own roadway
Technical features
5 500kg - 12 125lb (weight empty)
STANAG 2413 frame ( ISO corner in option)
Only 10 minutes and 2 operators are required to deploy 100 m of Quick Access™ type MM3V25.

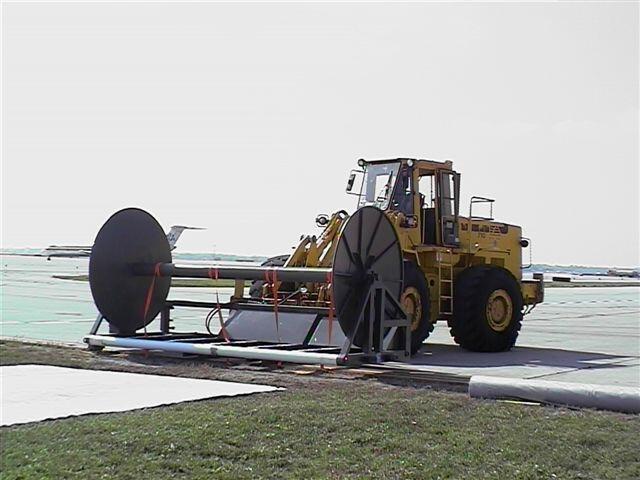

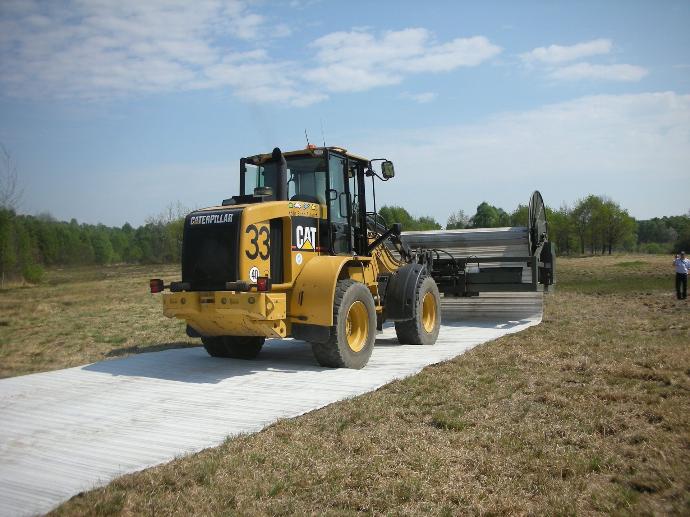

Front Loader Mounted Dispenser - FLRD™
The FLRD™ is a roadway deployment system for front-loader. It makes a front-loader able to deploy a temporary roadway in a few minutes. The vehicle driver can operate the FLRD™ by its own thanks to the hydraulic connections with the system. FLRD™ can fit directly the vehicle interface or be connected on forks.
Options
Removable beam
Technical features
1 800kg - 3 900lb (weight empty)
Quick Access™ MM3V25 compatible

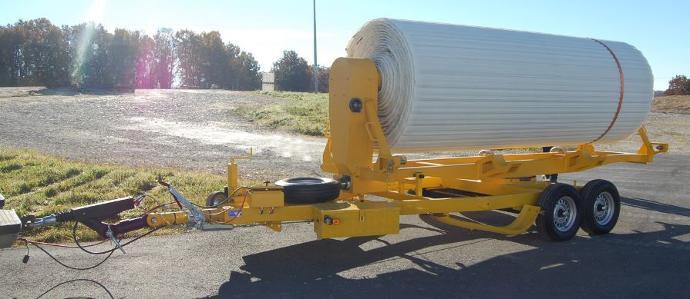

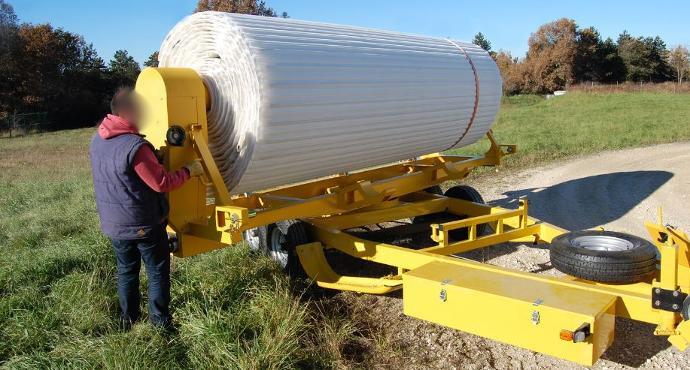

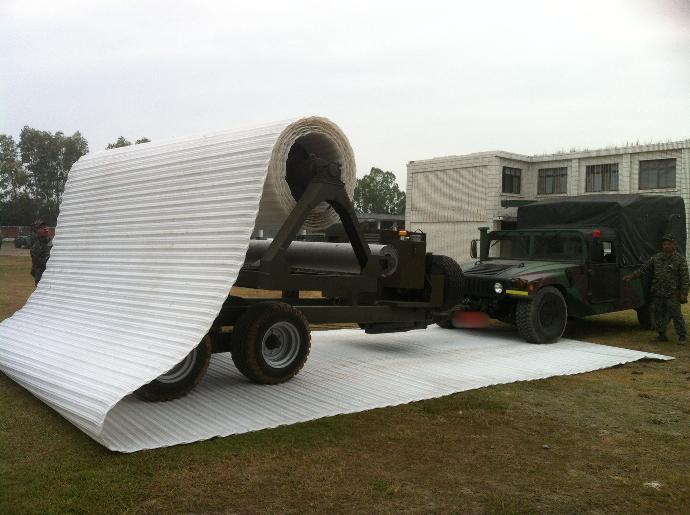

Trailer Mounted Dispenser - TMRD™
The Trailer Mounted Dispenser™ is a roadway deployment system integrated on its own dedicated trailer. Adjustable to any towing vehicle, the TMRD ™ can be towed and used by any vehicle capable of handling the trailer. The system can be powered by the vehicle or from an autonomous thermic system.
The Trailer Mounted Dispenser™ is made with high anti-corrosion steel beams.
It includes stowage enclosures and a special remote control to ensure the systematic winding and the unrolling of the mat.
Optional open road traffic compliance
Depending on the technical requirement & the local road circulation rules, the TMRD™ can be adapted for open road circulation.
Technical features
2 700kg - 5 900lb
Mobi-mat® mats type allowed: A2X, MM3V25, FCR
