BRAX matting solutions are dedicated to deployable bridges. The BRAX range offers specific ground reinforcement for military engineering bridges. BRAX solutions improve the ground load-bearing capability at the entrance and the exit of the bridges.
It performs with classic military dry bridges and also with floating bridges. These matting equipment give the best load-bearing capability on non-stable soils. For sand or mud riverside, BRAX allows heavy vehicle traffic.
BRAX mats are designed by Mobi-mat®
in order to be robust. They assure hundreds of vehicle traffic on soft soils. The BRAX solutions meet the highest requirements in terms of MLC (Military Load Classification) and CBR (Californian Bearing Ratio).
French Origin Guarantee
BRAX is certified French Origin Guarantee by an independent organism. "French Origin Guarantee is the only certification that certify the french origin of a product" (www.originefrancegarantie.fr). This certificate makes its true value to the french know-how and ensures a real transparency unlike self-proclamed formulas such as "made in France", "french manufacture" or "french company".
DESCHAMPS is a SME set up in Charente, France since 1860. It is here that are manufactured the access mats.
The unique know-how of our teams allows to guarantee a local manufacture and to avoid any component importations from low-cost countries. DESCHAMPS is also certified ISO 9001 and ISO 14001, guaranteeing the best level of quality and environmental considerations.
TECHNICAL FEATURES
BRAX - MM3V25
Fabric
3D polyester fabric & fiberglass roads
White color
Installation
Manual deployment or Truck, trailer & front end loader mounted dispenser deployment
Mats connection - stakes or ground anchors
Technical features
10 kg/m² - 2.05 lb/sqft
4.2m x 5m - 13.8' x 16.5'
4.2m x 10m - 13.8' x 33'
Capabilities
Provides exceptional traction for wheeled vehicles and ensures a perfect ground adhesion
Enables a load bearing up to 80 ton-vehicle traffic on soft soil and mud
Mud, sand, snow and dust retainer
Anti-skid surface

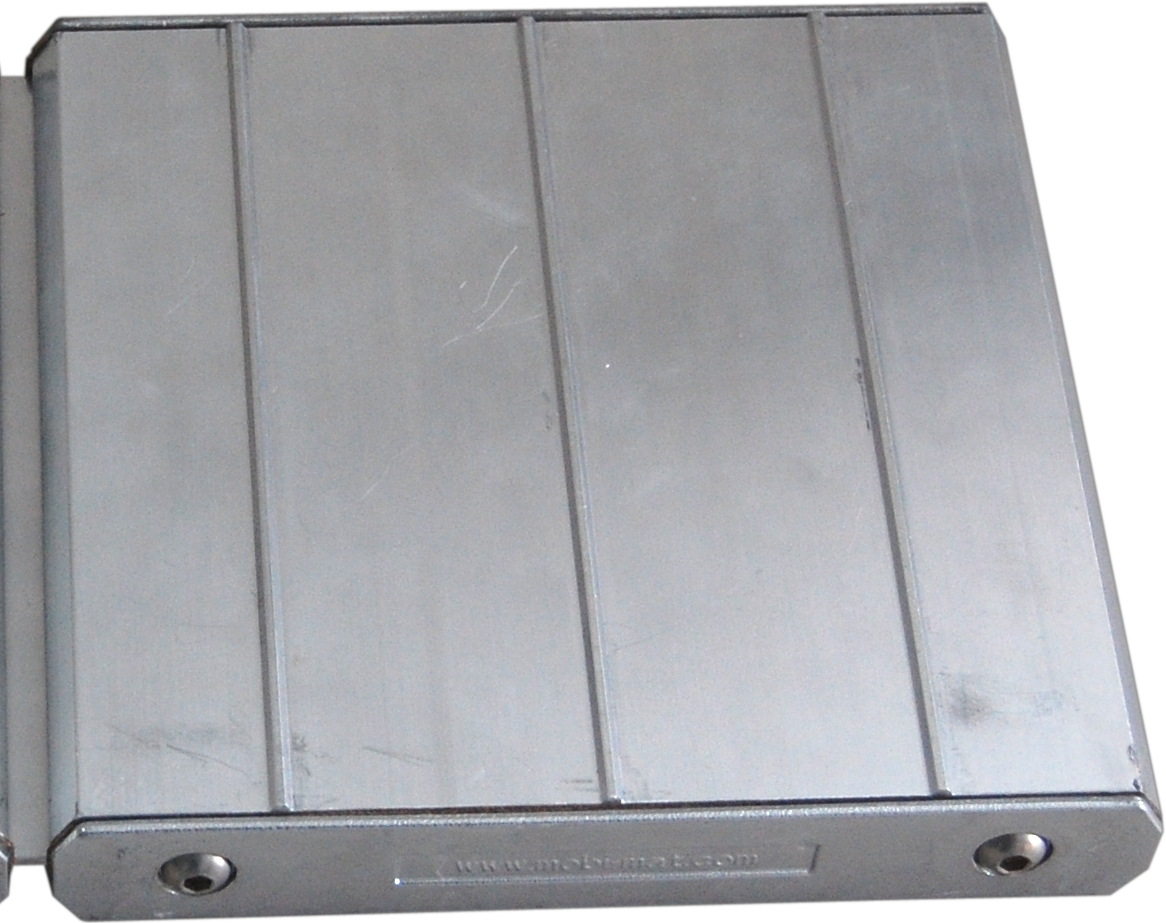

BRAX - FCR
Fabric
Metal
Aluminium
Installation
Truck, trailer & front end loader mounted dispenser deployment
Mats connection - stakes or ground anchors
Technical features
31 kg/m² - 6,35 lb/sqft
4,2m x 25m - 13,8' x 82'
4,6m x 50m
- 15,1' x 164'
Capabilities
Provides exceptional traction for wheeled vehicles and ensures a perfect ground adhesion
Enables a load bearing up to 150 ton-vehicle traffic on soft soil and mud
Mud, sand, snow and dust retainer
Anti-skid surface
